A breakthrough innovation for digitalized pneumatics

Festo-2MotionTerminal

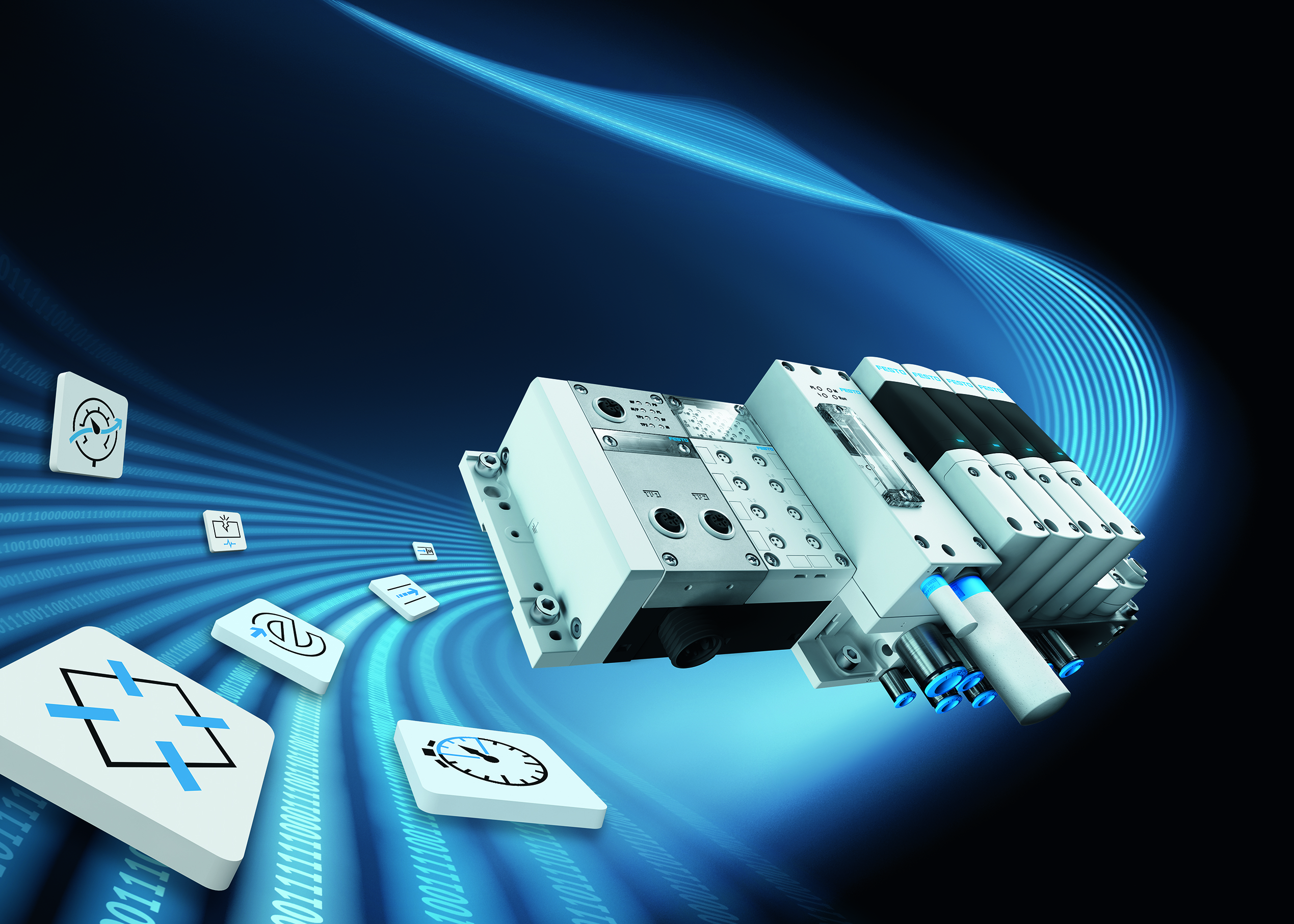

A revolution in pneumatics: the Festo Motion Terminal

The machinery and plant construction industry is faced with the challenge of catering to the increasing consumer demand for individually adaptable products at affordable prices. Along with the continuing need for mass-produced goods for the world’s population, which will soon reach the eight-billion mark, demand is also growing for small-series production down to lot size 1. Digitalization in the course of Industry 4.0 is providing the necessary key technologies. With the Festo Motion Terminal, Festo has now for the first time developed a universal, programmable platform for highly flexible and adaptive automation with digitalized pneumatics.

With the Festo Motion Terminal, Festo is merging hardware and software to produce a digital valve. Over a three-year development period not only an intelligent pneumatic automation platform for Industry 4.0 was created, but in fact an entirely new solution space for the manufacture of products for the future that we cannot even conceive of today.

A revolution in pneumatics

A wide variety of valve functions can now be programmed and addressed via apps. The Festo Motion Terminal combines the functions of over 50 individual components: this greatly simplifies the engineering process and enables numerous hardware components to be dispensed with. Machinery and plant manufacturers can benefit from entirely new designs for platforms and modules, and plant operators can gain a competitive advantage thanks to flexible and adaptive systems, data transparency, communication ability, extreme process reliability and simpler operation of complex machinery.

Project manager Dr. Julia Duwe, Head of Future Motion Solutions Management, explains: “In technological terms, this entirely new platform combines mechanics, electronics, control engineering and software. With a choice of various motion apps, clients have the possibility of both registering the condition of their systems in real time and of modifying their functions, thereby flexibly adapting to the demands of their customers. The Festo Motion Terminal ensures consistent process quality and transparency in the construction and operation of production plants, provides flexibility throughout the machinery life cycle and reduces costs arising from faults.”

Increasing speed, simplifying modifications, reducing complexity

When a system is to be adapted to customer wishes, with the programmable platform the mechanical engineer no longer needs to carry out intricate hardware modifications for a large number of individual components – this cuts delivery times. New functions are rapidly and intuitively programmed on the Festo Motion Terminal. The software functionality also allows the engineer to offer additional services and new business models. The integrated sensors supply operational data in real time and give insights into the internal processes of the system. The virtual production documentation issues warnings in cases of critical wear or divergent parameters. Disturbances in the complex processes are made visible and readily comprehensible. The digitalized functionality is invisibly programmed and protected in a “black box”, rather than being exposed invisible hardware elements – this ensures a high degree of protection for intellectual property.

Focus on user-friendliness

In the development of the software, great importance was attached to user-friendliness. The user can directly access the device via Internet technology. The various motion apps can be configured either using the browser or in the customary way via machine control. Modifications to production orders can be programmed by app during regular operation without the need for reconfiguration. Variable process and cycle times allow flexible production down to lot size 1, for instance for filling packages of different sizes in the one system.

Efficient and sustainable

Apps for the energy-efficient operation of pneumatic applications significantly reduce energy consumption, and depending on application, the piezo valves also bring about energy savings of up to 99% in comparison with conventional solenoid valves. A diagnosis app is also provided for the location of leakages. Savings in compressed air consumption of up to 70% are likewise possible as compared with standard operation. Thanks to its programmability the functions of the Festo Motion Terminal can be extended even after purchase, and production facilities remain state-of-the-art at all times. This ensures longer system lifetimes.

The Festo Motion Terminal is a door-opener for companies that now want to make their production fit for Industry 4.0. Festo has established two entirely new dedicated assembly lines to accommodate the expected high demand for this product.

The worldwide rollout will take place after the premiere at the Hannover Messe trade fair.

…Read more about Festo and Industry 4.0

FESTO
www.festo.com/motionterminal
