Greg had been the maintenance engineer at the manufacturing plant for nearly 10 years. He knew every pump, conveyor, and compressor in the facility. When something went wrong, people called him. But compressed air had always been a bit of a mystery.
The system seemed to run fine. The compressors started, pressure stayed stable, and production never complained. Still, the plant’s energy manager kept pointing to one troubling number: the electricity bill for the compressor room.
Greg decided it was time to learn more about what the system was actually doing. After reading about compressed air efficiency, he convinced management to install a compressed air flow meter on the main header leaving the compressor room.

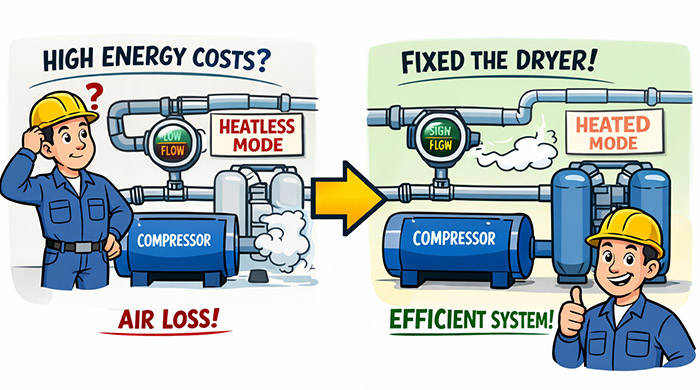

Fig. 1. Careful measurement and analysis of the results helped find this serious dryer problem.
The goal was simple: Measure how much air the compressors were producing. When the meter went online, Greg watched the readings closely. The compressor that was running was rated for about 1,000 cfm, yet the meter consistently showed far less flow entering the plant.
At first, Greg assumed the flow meter must be wrong. He checked the installation.
He recalibrated the device. He even compared readings with a temporary portable meter. Same result every time. The compressor was producing air, but the plant wasn’t receiving as much as it should.
Greg started tracing the air system step by step, following the piping from the compressors through the treatment equipment. Everything looked normal until he reached the desiccant dryer. The plant used a heated blower dryer, a design intended to reduce purge air losses and save energy. But when Greg checked the control panel, something caught his eye. The dryer was running in heatless mode.
Greg frowned. Heatless dryers use compressed air to regenerate the desiccant towers. In many cases, they can consume 15-20% of the compressor’s output just for purge air. Heated blower dryers, on the other hand, use ambient air and heaters for regeneration, dramatically reducing compressed air losses.
Somewhere along the way, maybe during maintenance or troubleshooting, the dryer had been switched to heatless mode and never switched back. That meant a large portion of the compressor’s output was being used to regenerate the dryer rather than supply the plant. Greg reset the control panel and returned the dryer to heated blower operation. Within minutes, the flow meter told a different story.
Airflow to the plant increased noticeably. The compressor began cycling less often, and the system pressure stabilized with less effort. Greg watched the numbers with satisfaction.
Not only was the plant now receiving the full capacity of its compressor, but the system was operating more efficiently as well. What started as a simple measurement project had uncovered a hidden inefficiency that had probably been costing the plant money for years.
At the next operations meeting, Greg shared the results. “Turns out the compressor was doing its job all along,” he said with a smile. “We just weren’t using the air where we thought we were.”
The lesson was clear: you can’t manage what you don’t measure. Sometimes the biggest improvements start with one simple question and one well-placed flow meter.
