The Filtration Division of power management company Eaton has launched its line of WPL spin-on filters that protect pumps, valves, compressors, and hydraulic systems from contamination as per ISO 2941, ISO 3723, and ISO 2942 standards. The filters are designed to provide one of the highest cleanliness levels for hydraulic systems, featuring cartridges that are engineered to fit into many leading filter systems on the market. They help provide trouble-free operation for power generation, oil and gas, construction, forestry, mining, and material handling markets.

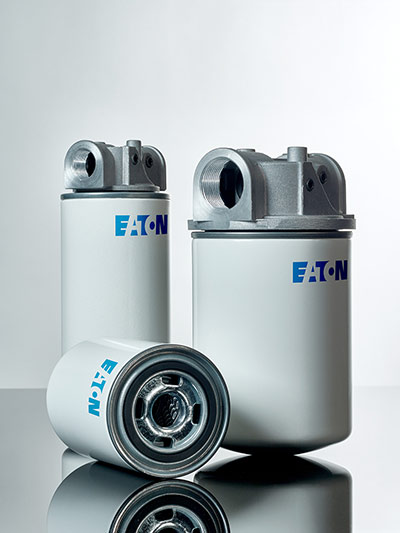

Eaton’s WPL spin-on filters consist of a head mounted directly in-line with the piping and a cartridge containing a WP filter element. The cartridge seals to the head to prevent leakage. Spin-on filters are easy to replace without special equipment or tooling, and do not require emptying or cleaning. Operators can choose between five element sizes based on their service-life requirements. Each option is offered with fiberglass or paper as the filter material and provide a filter fineness of 10 µm.
Eaton’s WPL spin-on filters provide the following characteristics:
- Compatible with a variety of mediums such as oils, fuels, emulsions, glycol water and synthetic fluids
- Flow rates: up to 48 gpm (180 lpm)
Operating pressure: 145 psi (10 bar)
Operating temperatures: 14 to 230°F (-10 to 110°C)
Eaton
www.eaton.com/us/en-us/catalog/filters-strainers
