The European Union aims to expand the capacity for wind power generated at sea to at least 60 GW by 2030. With its sealing solutions for the foundation structures, Freudenberg Sealing Technologies helps ensure that new wind turbines reach a service life of at least 30 years or more despite the rough conditions at sea.
The highest wind velocity ever measured in the German North Sea was 119 mph (191 km/h). While wind turbines erected in the ocean are shut down even at considerably lower wind speeds, the structures still have to withstand the enormous force of a hurricane no matter what and throughout their entire service life.
The foundation that anchors the towers in the seabed plays an important role. In the shallow waters predominant in the North and Baltic Seas, the foundation is usually constructed using so-called “monopiles.” These are steel piles driven into the seabed until only the upper ends are above the water surface. Even for a 10-MW turbine, the tower can reach a height of 493 ft (150 m) to the rotor hub and is usually not mounted directly on the piles but supported by a flange. This flange is attached with several dozen bolts that become inaccessible for any maintenance once the tower is installed. To prevent the screw connections from corroding in the harsh environment at sea, they have to be protected against the ingress of moisture. Today, seals from Freudenberg Sealing Technologies are already handling this crucial task in more than 800 offshore wind turbines.

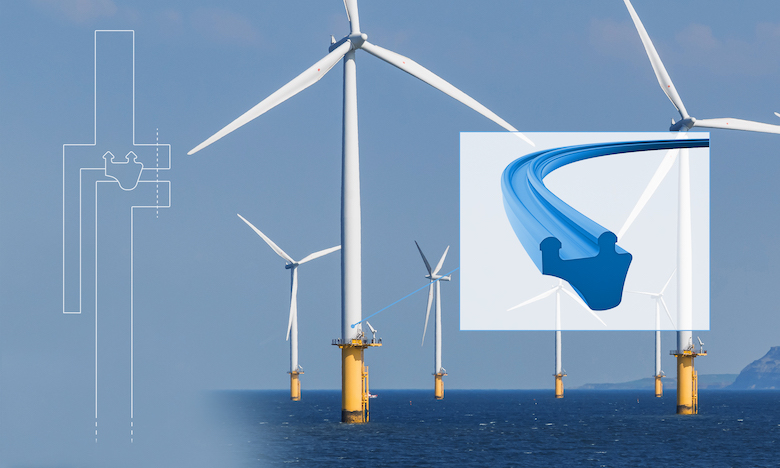

The most important function is performed by a ring seal at the top of the pile. It encloses the interior part of the linking piece that supports the screw connection. In modern installations, the flange seal — with the abbreviation MP-TP (monopile transition piece) — can reach a diameter of 8 to 10 m. In recent years, Freudenberg Sealing Technologies has also offered this seal in a double version. The main advantage of the double-row design is the resulting redundancy. “If minor damage occurs at one of the two seals during the transport or installation, the function is still ensured,” said Manuel Hille, Freudenberg expert. “In addition, this makes it possible to optimally combine different designs and materials with each other.” However, the specific design is almost exclusively customer-specific to make optimum use of the available assembly space. Freudenberg also offers an already established standard product upon request.
In a conventional design, a gap remains between the lower end of the connecting piece and the pile. One or two ring seals interspersed with air chambers designed as elastic breakwaters ensure no seawater can enter. On the other hand, if the gap is filled with cement, a ring seal can keep the cement in the desired position during the curing and later protect it against damage from saltwater. Maintenance platforms, which are often positioned above the water surface inside the monopile, can additionally be protected against the ingress of gases with a specially designed seal. These kinds of gases may form due to biological seawater processes in the pile.
Designed for long life
In recent years, there has been a sharp increase in the expected service life of components used for sea-based wind turbines. While 25 years were initially considered a good lifespan, this standard has now risen to up to 35 years. Such a long operating life can’t be ensured using bench tests. This is why Freudenberg uses an adapted Arrhenius algorithm to extrapolate the results of six-week intensive stress tests. This quite familiar procedure, named after the Swedish chemist and Nobel laureate Svante August Arrhenius, has been consistently refined by Freudenberg experts in recent years. They significantly improved the service life model by coupling chemical and physical effects with the structural mechanical behavior of the material.
“80% of all currently projected marine wind farms are based on monopile technology,” said Marcel Schreiner, who oversees sales in the energy sector at Freudenberg Sealing Technologies. “This is an important growing market for us.” In the expert’s view, the trend towards ever larger systems — nominal capacities of 20 MW are under discussion for 2030 — speaks in favor of paying particular attention to the service life when selecting components.
Freudenberg Sealing Technologies will showcase the MP-TP seals at its booth B6.531 at the WindEnergy 2022 trade fair in Hamburg, Germany. In addition, other products such as Seventomatic S95 for oil-lubricated main shaft bearings, piston accumulators for pitch control of wind turbines, and seals for electrolyzers will be on display. At the same booth, Klüber Lubrication and Freudenberg Performance Materials will also present their latest products and developments specifically for the wind energy industry.
Freudenberg Sealing Technologies
