High-Capacity SBL900 hydraulic gantry for lifting and rigging applications

By Mike Santora | May 5, 2016

Share

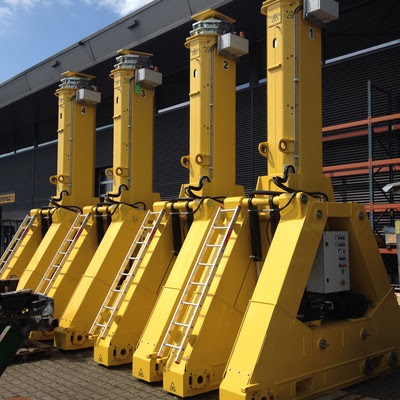

enerpace-gantry-imageBuilding on the success of the SBL1100, Enerpac introduces the SBL900 hydraulic gantry, the company’s newest folding boom hydraulic gantry. Equipped with two stage lifting cylinders, the SBL900 lifts up to 37-ft and can handle up to 667 tons at the top of the second stage.

Designed to meet stringent safety requirements, the SBL900 complies with the safety standards set by ASME B30.1-2015. To ensure quality performance, each gantry is tested to 120 percent of capacity at full extension and witness tested by a qualified third party organization. The SBL900 is also CE compliant.

The SBL900 offers features to enhance lifting performance, including:

Octagonal boom provides added strength for increased capacity and lifting height
Foldable boom enables easy transport and setup
Mechanical locking allows load holding for extended periods of time
Self-contained hydraulics enables easier setup and eliminates trip hazards associated with hydraulic hoses
Self-propelled tank rollers provide synchronized travel in a smooth continuous manner while ensuring optimum load distribution

The control system allows users to operate the lift locally at each leg or use the Intellilift remote control. The wireless system ensures automatic synchronization of lifting with accuracy of 1 inch and automatic synchronization of travel with accuracy of 0.60 inch. This ensures continuous control and monitoring of lifting and travel operations while providing complete visibility of the load.

For enhanced durability, the SBL900 offers a sturdy, proven base frame that can withstand a variety of environmental conditions. It can also be equipped with a powered side shift for easy operation.

Enerpac
enerpac.com
