IFPM 33 fluid purifier removes water, gases and particulate contaminants from oils

By Mary Gannon | July 19, 2021

Share

To increase reliability, life, and efficiency of systems, the hydraulic Filtration Division of Eaton introduces the optimized version of IFPM 33 mobile, off-line fluid purifier system. The fully-automated, PLC-controlled purifiers effectively remove free, emulsified and dissolved water, free and dissolved gases, and particulate contamination down to 3 µm from light transformer oils to heavy lubricating oils at a flow rate of 8 gpm (30 lpm). Typical high-moisture applications include hydroelectric power, pulp and paper, offshore and marine.

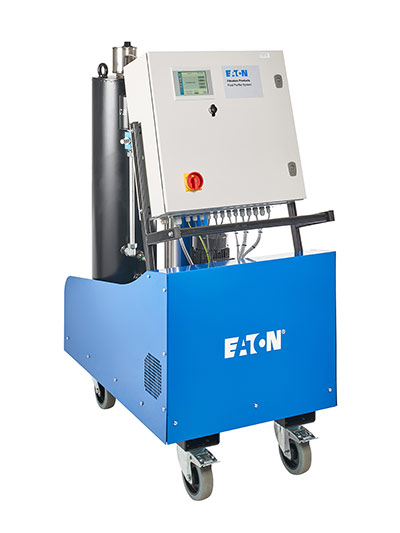

Eaton IFPM 33 Fluid Purifier System“Water is one of the most common contaminants and the second most destructive in oils, besides particulate contamination,” said Eric Rud, global product manager at Eaton’s Filtration Division. “Some of the most damaging problems water contamination can cause include fluid breakdown, additive depletion, reduction in viscosity, oil oxidation, internal corrosion, and abrasive wear in system components.”

The purifier contains a filter element of the NR630 series according to DIN 24550-4 and guarantees fluid filtration in addition to dewatering. The fineness of the filter element can be selected according to market standards, for example 10VG element with ß200 = 10 µm(c).

These VG media are multi-layer, pleated constructions made of glass fiber fleece with a high retention rate of fine dirt particles at constant performance over the element lifetime as well as high dirt-holding capacity. Equipped with Viton seals, these filter elements are perfectly suited to support dewatering.

A portable and environmentally friendly solution, the IFPM 33 is designed with the operator in mind. Some of the advanced technology features include a user-friendly 5.7-inch touchscreen PLC for safe and reliable operation with a user interface offered in nine user-selectable languages. As standard, the display has an Ethernet connection for remote control and monitoring with the ability to send email alert messages. There is also a USB interface to transfer data for further analysis. With a 154 lbs (70 kg) weight reduction over the previous model and the unit’s compact design, it is easy for the system to operate and maneuver in confined areas.

Startup and operation of the IFPM 33 is a simple offline process by easily connecting the hoses and starting by the main switch. The contaminated fluid is drawn into the fluid purifier system by a vacuum, which is then heated and diffused over a dispersal material; this increases the evaporation surface area. Simultaneously, the purifier system sucks in ambient air through a fine filter, which flows against the oil in the vacuum chamber. The water is absorbed by the air then passes a vacuum pump and the humid air is released back into the atmosphere through an oil mist separator. The dewatered fluid is then pumped back into the oil reservoir by a gear pump through a high-performance filter element to remove particulate contaminants.

For protection against overpressure, the gear pump is equipped with a safety valve. Continuous monitoring of fluid temperature, water saturation, and filter clogging are also provided via onboard sensors.

Eaton
www.eaton.com
