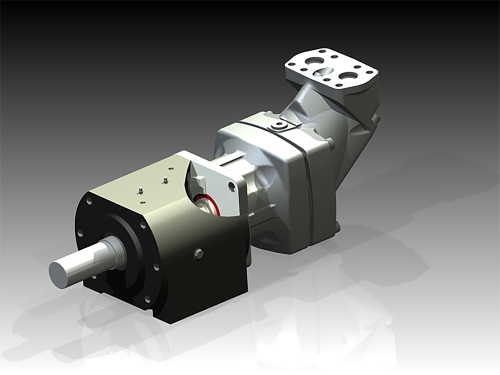

Zero-Max Overhung Load Adaptors protect shaft seals in hydraulic systems. They provide an intermediate mounting platform between a motor and pump to absorb both internal and external stress conditions in a hydraulic system.
Designed to provide an extra layer of protection to hydraulic actuated functions, Overhung Load Adaptors prevent shaft seal breakdown, a condition often unseen until system damage occurs. Replacing damaged shaft seals is laborious and costly because multiple hydraulic components usually must be disconnected to get at the seal failure. Now, these conditions can be eliminated using Overhung Load Adaptors for protection.

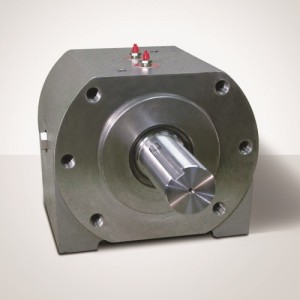

Designed for either face or foot mounting, standard Overhung Load Adaptors are available in over 50 models with input bore sizes that range from 5/8 to 3-1/2 in. SAE mounts available include A, B, C, D, E and F mounts with 2 or 4 bolt mounting flanges. Overhung Load Adaptors are available with many shaft variations including splined, threaded, tapered and extended output shafts, all now available with the
special Zero-Max corrosion protection process. Special input bores and housing modifications are also available.
The corrosion protection shaft option is another addition to more than 1300 designs offered by Zero-Max to meet new and unusual overhung load system requirements. These specials include custom inverted bearing designs and multiple lubrication ports that increase the Overhung Load Adaptor’s load capacity, bearing life and smooth system performance. Manufactured to ISO 9001:2008 quality standards, Zero-Max Overhung Load Adaptors are ruggedly built with shafts precision machined from high quality 130,000 psi Stress-proof steel. All custom Overhung Load Adaptor designs include a detailed CAD approval drawing submitted prior to manufacture.
Overhung Load Adaptors are used in workboats, recycling systems, forestry shredders, cold planers for road paving, industrial conveyor drives and many others where hydraulic systems require shaft seal protection.
