Eisele Connectors, a subsidiary of Eisele Pneumatics GmbH & Co. KG, now offers a new practical connector in its BasicLine push-in fitting series. The company will present its ball bearing rotary connector at IMTS 2018. This addition to series 14 of the Eisele BasicLine can rotate freely around its own axis. The new rotary connector offers a solution for conveying compressed air from a rigid component to a rotating component.

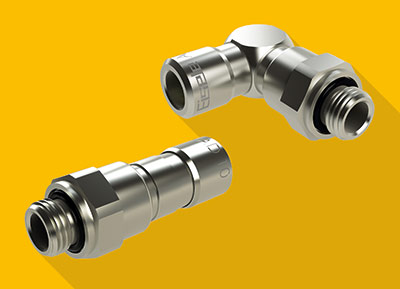

The rotary connector, which is designed for an operating pressure range of -13 to 232 psi, is suitable for all applications that are compatible with nickel-plated brass. The seals are made of NBR and FKM. The rotary connector is available in a straight, an angled and a T-shaped version for tube diameters of 8, 10 and 12 mm. The screw-in end is equipped with G1/4 threads.
This new push-in connector from series 14 of the BasicLine is the first fully rotating connector in Eisele’s product spectrum. The rotary movement is enabled by a hybrid stainless steel ball bearing with ceramic balls, which is approved for rotational speeds of up to 800 rpm. Stainless steel versions that are suitable for other operating media will follow.
Visit Eisele Connectors Inc. at IMTS 2018, booth 121467 (east building, level 2).
Eisele Connectors Inc.
